Typical applications of
TOPSOLAR® PV Al 1500 V HEAVY DUTY
Select...
TOPSOLAR® PV Al 1500 V Heavy Duty is best on global solar projects executed by EPCs, developers, and installers require high-performance PV cables with exceptional resistance to UV radiation, ozone, and extreme temperatures engineered for durability, efficiency, and compliance in utility-scale and distributed generation applications.
TOPSOLAR® Al 1500 V Heavy Duty delivers optimal performance for aluminum-conductor PV powering on industrial plants, combining current-carrying efficiency with a heavy-duty, weather-proof construction that resists UV, chemicals, and mechanical stress for maximum durability in harsh environments.
TOPSOLAR® Al 1500 V Heavy Duty is specifically engineered for power distribution with its robust, weather-proof aluminum construction and exceptional resistance to UV radiation, ozone, and extreme temperatures, ensuring maximum long-term reliability and current-carrying capacity in the harshest outdoor environments.

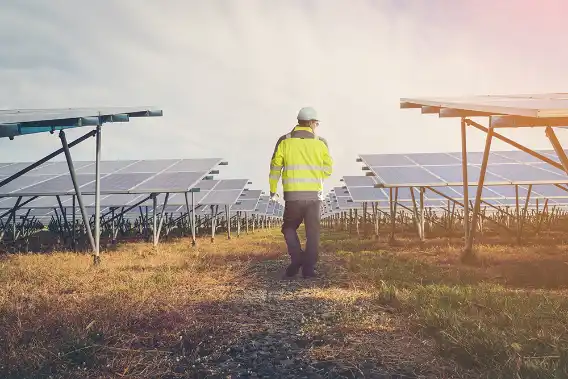

PV plants
TOPSOLAR® PV Al 1500 V Heavy Duty is best on global solar projects executed by EPCs, developers, and installers require high-performance PV cables with exceptional resistance to UV radiation, ozone, and extreme temperatures engineered for durability, efficiency, and compliance in utility-scale and distributed generation applications.
Industrial facilities
TOPSOLAR® Al 1500 V Heavy Duty delivers optimal performance for aluminum-conductor PV powering on industrial plants, combining current-carrying efficiency with a heavy-duty, weather-proof construction that resists UV, chemicals, and mechanical stress for maximum durability in harsh environments.

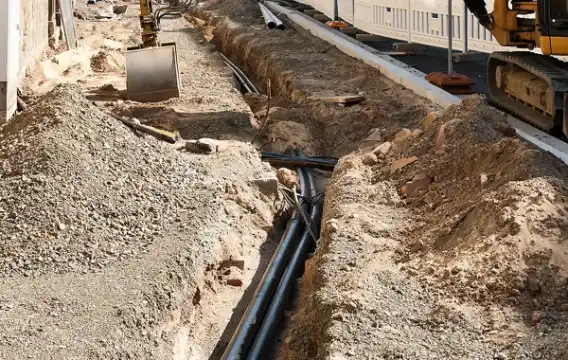

Buried PV installations
TOPSOLAR® Al 1500 V Heavy Duty is specifically engineered for power distribution with its robust, weather-proof aluminum construction and exceptional resistance to UV radiation, ozone, and extreme temperatures, ensuring maximum long-term reliability and current-carrying capacity in the harshest outdoor environments.
Resources for engineers
TOPSOLAR® PV Al 1500 V HEAVY DUTY Technical datasheet
Download file
TOPSOLAR® PV Al 1500 V HEAVY DUTY
Technical specifications
Application
The TOPSOLAR® PV LSZH AL 1500V HEAVY DUTY cable can be directly buried in most soils. They can be installed in smaller trenches as no sand or external backfill is required. The special outer sheath compounds make this cable highly resistant to possible shocks and friction during its installation (impact and tearing). In addition, the cable is AD8 water resistant (submersible). Finally, this cable resists degradation caused by ultraviolet (UV) rays as it is tested for UV protection according to the solar standard EN 50618.

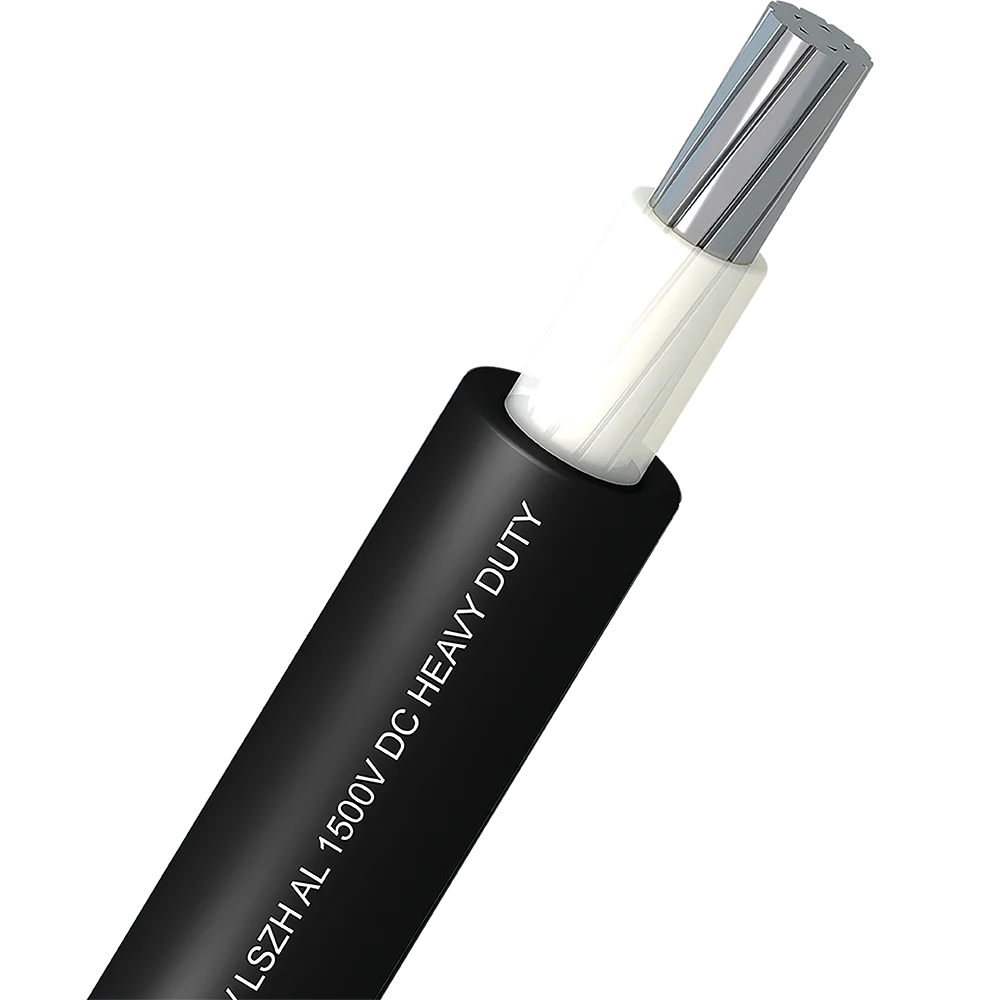

Construction
Conductor
Insulation
XLPE.
Natural colour.
Outer sheath
Polyethylene LSZH and UV resistant.
Black colour.
Standards / Compliance
ACCORDING TO: IEC 60502-1.
Standards and approvals
- CE.
- RoHS.
Disclaimer
The information displayed on this website is provided for reference purposes only and is not legally binding. Specifications, values, and technical data may be subject to change without notice. To obtain verified and up-to-date technical data for a specific cable, please download Top Cable’s official Technical Specification in PDF format. The PDF document constitutes the sole authoritative source of product data.
Characteristics
Electrical performance
1,5/1,5 (1,8) kV DC according to EN 50618.
1,8/3 (3,6) kV AC according to IEC 60502-1.
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuittemperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Minimum installation and handling temperature: 0°C (on cablesurface).
Fire performance
Halogen free according to EN 60754-1 / IEC 60754-1
Low corrosive gases emission according to EN 60754-2 / IEC 60754- 2.
Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG4 (≤ 40 J) Extra high severity according to NF C 33-226.
Abrasion according to NF C 33-226
Environmental performance
UV resistant according to EN 50618.
Water resistance: AD8 Submersion.
Installation conditions
Open Air.
Buried.
In conduit.
Other
Meter by meter marking.
