TOPSOLAR® PV LSZH
Al 1500 V

Name: TOPSOLAR® PV LSZH AL 1500V
Brand: TOPSOLAR®
SKU: PV LSZH AL 1500V
Availability: InStock

Aluminium PV cable.

ACCORDING TO: IEC 60502-1

TOPSOLAR® PV LSZH DC Feeder Aluminium cable is suitable for all types of underground and open air solar installations.

Aluminium cable

1500 V

Enhanced Fire Safety LSZH / CPR

Typical applications of
TOPSOLAR® PV LSZH Al 1500 V

Select...

TOPSOLAR® PV LSZH Al 1500 V is best on global solar projects executed by EPCs, developers, and installers that require high-performance PV cables engineered for fire safety, durability, efficiency, and compliance in utility-scale and distributed generation applications.

TOPSOLAR® PV LSZH Al 1500 V aluminium solar cables offer fire safety, cost-efficient, durable, and high-conductivity power transmission for industrial solar plants, ensuring reliable energy performance.

TOPSOLAR® PV Al 1500 V is engineered for power distribution with its lightweight aluminum construction and exceptional resistance to UV radiation and high temperatures, ensuring fire safety, maximum efficiency and durability in demanding solar applications.

PV plants

Industrial facilities

Power distribution

Resources for engineers

TOPSOLAR® PV LSZH Al 1500 V Technical datasheet Download file

TOPSOLAR® PV LSZH Al 1500 V

Technical specifications

Application

TOPSOLAR® PV LSZH DC Feeder Aluminium cable is suitable for all types of underground and open air solar installations. This cable is recommended for connections between string boxes and photovoltaic inverters in large scale rooftops or ground farms.

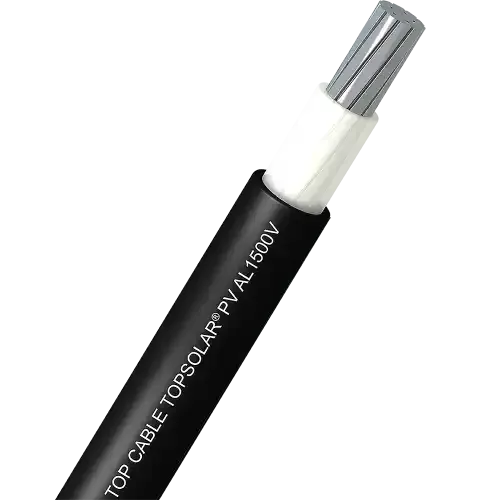

Construction

Conductor

Aluminium class 2.

Insulation

XLPE.
Natural colour.

Outer sheath

Polyethylene LSZH and UV resistant.
Black colour.

Standards / Compliance

ACCORDING TO: IEC 60502-1

Standards and approvals

CE.
RoHS.

Disclaimer
The information displayed on this website is provided for reference purposes only and is not legally binding. Specifications, values, and technical data may be subject to change without notice. To obtain verified and up-to-date technical data for a specific cable, please download Top Cable’s official Technical Specification in PDF format. The PDF document constitutes the sole authoritative source of product data.

Characteristics

Electrical performance 1,5/1,5 (1,8) kV DC according to EN 50618. 1,8/3 (3,6) kV AC according to IEC 60502-1.

Thermal performance Maximum conductor temperature: 90°C. Maximum short-circuit temperature: 250°C (max. 5 s). Minimum service temperature: -40°C (fixed and protectedinstallations). Minimum installation and handling temperature: 0°C (on cablesurface).

Fire performance Flame non-propagation according to EN 60332-1 / IEC 60332-1. Halogen free according to EN 60754-1 / IEC 60754-1. Low corrosive gases emission according to EN 60754-2 / IEC 60754-2.

Mechanical performance Minimum bending radius: 5x cable diameter. Impact resistance: AG2 Medium severity.

Environmental performance UV Resistant according to EN 50618. Water resistance: AD8 Submersion.

Electrical performance

Other Meter by meter marking.
