TOXFREE® LSZH FIRE ALARMS Z1OZ1-K
Select...
TOXFREE® LSZH FIRE ALARMS Z1OZ1-K (AS) is designed to comply with the regulations of Fire Detection and Alarm systems. It is recommended to be used in public places, although it should not be used for direct connection to the power supply network of another low impedance sources.
TOXFREE® LSZH FIRE ALARMS Z1OZ1-K (AS) is designed to comply with the regulations of Fire Detection and Alarm systems. It is recommended to be used in public places, although it should not be used for direct connection to the power supply network of another low impedance sources.
TOXFREE® LSZH FIRE ALARMS Z1OZ1-K (AS) is designed to comply with the regulations of Fire Detection and Alarm systems. It is recommended to be used in public places, for reliable circuit integrity and minimal fire hazard within the fixed infrastructure of a building. This cable should not be used for direct connection to the power supply network of another low impedance sources.
Fire Detection and Alarm systems
TOXFREE® LSZH FIRE ALARMS Z1OZ1-K (AS) is designed to comply with the regulations of Fire Detection and Alarm systems. It is recommended to be used in public places, although it should not be used for direct connection to the power supply network of another low impedance sources.
High-occupancy buildings
TOXFREE® LSZH FIRE ALARMS Z1OZ1-K (AS) is designed to comply with the regulations of Fire Detection and Alarm systems. It is recommended to be used in public places, although it should not be used for direct connection to the power supply network of another low impedance sources.
Fixed installations
TOXFREE® LSZH FIRE ALARMS Z1OZ1-K (AS) is designed to comply with the regulations of Fire Detection and Alarm systems. It is recommended to be used in public places, for reliable circuit integrity and minimal fire hazard within the fixed infrastructure of a building. This cable should not be used for direct connection to the power supply network of another low impedance sources.
Resources for engineers
TOXFREE® LSZH FIRE ALARMS Z1OZ1-K Technical datasheet
Download file
TOXFREE® LSZH FIRE ALARMS Z1OZ1-K DoP
Download file

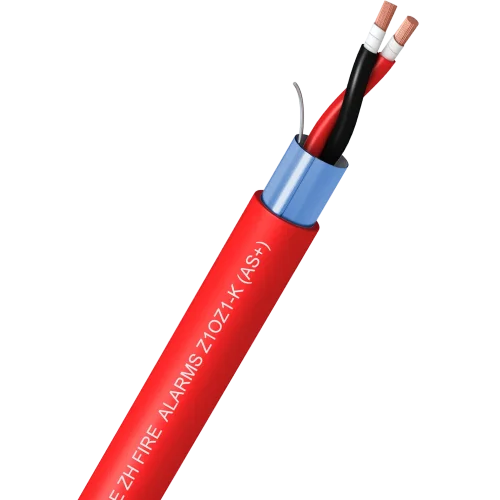

TOXFREE® LSZH FIRE ALARMS Z1OZ1-K
Technical specifications
Application
The TOXFREE® Z1OZ1-K cable is a designed to comply with the regulations of Fire Detection and Alarm systems. Its recommended to be used in public places. It should not be used for direct connection to the power supply network or other low impedance sources.
Construction
Conductor
Insulation
Polyolefin LSZH.
Conductor identification: Red – black.
Assembly of cores
The cores are twisted together.
Screen
Overlapping aluminium-polyester tape screen with 100% coverage + tinned copper drain wire.
Outer sheath
Polyolefin LSZH.
Red colour.
Standards / Compliance
BASED ON: EN 50525
Standards and approvals
- AENOR.
- RoHS.
- CE
Construction Products Regulation
- Cca-s1a, d1, a1.
Disclaimer
The information displayed on this website is provided for reference purposes only and is not legally binding. Specifications, values, and technical data may be subject to change without notice. To obtain verified and up-to-date technical data for a specific cable, please download Top Cable’s official Technical Specification in PDF format. The PDF document constitutes the sole authoritative source of product data.
Characteristics
Electrical performance
300/500 V
Thermal performance
Maximum service temperature: 70ºC.
Maximum short-circuittemperature: 160ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Fire performance
Flame non-propagation according to EN 60332-1/ IEC 60332-1.
Mechanical performance
Minimum bending radius: 10x cable diameter.
Environmental performance
Chemical & Oil resistance: Acceptable.
Water resistance: AD3 Sprays.
Installation conditions
Open Air.
In conduit.
On tray
Other
Meter by meter marking.
