TOXFREE® LSZH RZ1-K
Flexible LSZH power cable for public places.
Typical applications of
TOXFREE® LSZH MX
Select...
TOXFREE® MARINE LSZH MX cables excel as the premier choice for marine cable applications. They offer superior saltwater resistance, fire safety, and durability for harsh maritime environments
TOXFREE® MARINE LSZH MX cables excel as the premier choice for power, control, instrumentation, and low-voltage applications.
Marine shipbuilding cables for cruise ships and yachts require premium safety and comfort. These cables are fully certified by ABS, DNV-GL, and Lloyd’s Register.
Fishing vessels
TOXFREE® MARINE LSZH MX cables excel as the premier choice for marine cable applications. They offer superior saltwater resistance, fire safety, and durability for harsh maritime environments
Merchant vessels
TOXFREE® MARINE LSZH MX cables excel as the premier choice for power, control, instrumentation, and low-voltage applications.
Cruise ships & Yachts
Marine shipbuilding cables for cruise ships and yachts require premium safety and comfort. These cables are fully certified by ABS, DNV-GL, and Lloyd’s Register.
Resources for engineers
TOXFREE® LSZH MX Technical datasheet
Download file

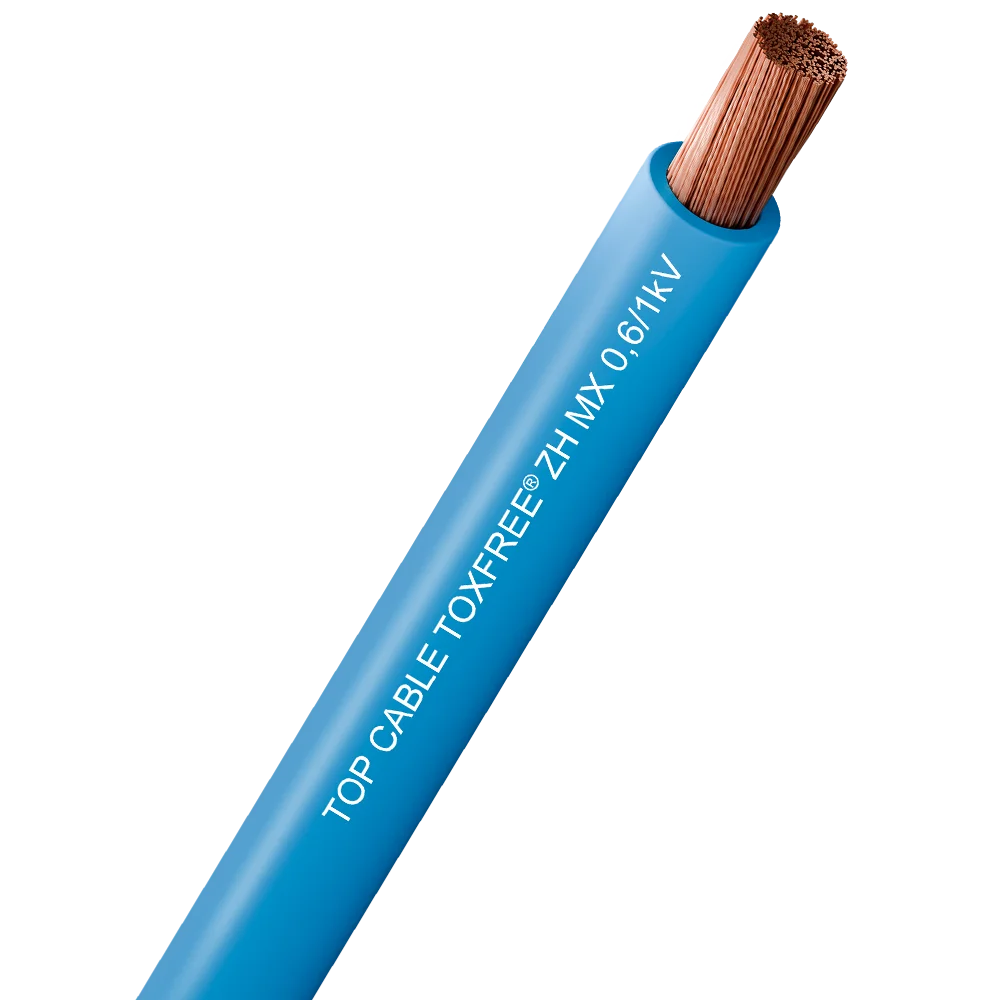

TOXFREE® LSZH MX
Technical specifications
Application
Toxfree® LSZH MX is a flexible cable for fixed and protected installations. It is highly recommended in marine applications and for use in public places.
Construction
Conductor
Insulation
Rubber LSZH.
The standard identification of insulated conductors is the following:
Blue RAL 5015.
Brown RAL 8003.
Black RAL 9005.
Red RAL 3000.
Green/yellow RAL 6018 / RAL 6021.
Grey RAL 7000.
White RAL 9010.
Other colours available on request.
Standards / Compliance
ACCORDING TO: IEC 60092-353
Standards and approvals
- CE.
- DNV-GL.
- RoHS.
Disclaimer
The information displayed on this website is provided for reference purposes only and is not legally binding. Specifications, values, and technical data may be subject to change without notice. To obtain verified and up-to-date technical data for a specific cable, please download Top Cable’s official Technical Specification in PDF format. The PDF document constitutes the sole authoritative source of product data.
Characteristics
Electrical performance
0,6/1kV
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Fire performance
Flame non-propagation according to EN 60332-1 and IEC 60332-1.
Fire non-propagation according to EN 60332-3-22 and IEC 60332-3-22.
LSZH (Low Smoke Zero Halogen) according to EN 60754-1 and IEC 60754-1.
Low corrosive gases emission according to UNE-EN 60754-2 and IEC 60754-2.
Low smoke emission according to UNE-EN 61034 and IEC 61034.: Light transmittance > 60%.
Mechanical performance
Minimum bending radius: 4x cable diameter.
Environmental performance
Chemical & Oil resistance: Acceptable.
Installation conditions
Open Air.
In conduit on a bulkhead
On a bulkhead
Other
Meter by meter marking.
