TOXFREE® MARINE XOxZ1-K XOxTCuZ1-K
Technical specifications
Application

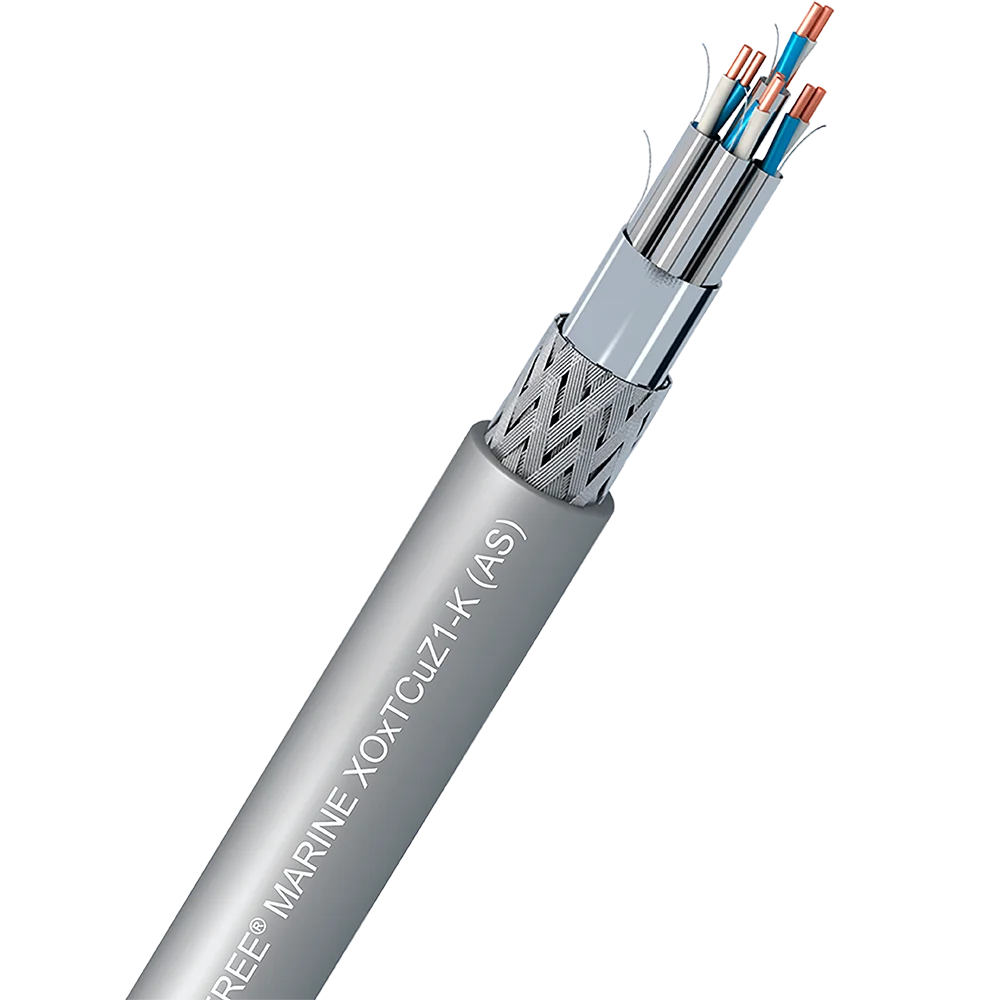

The TOXFREE® Marine XOxTCuZ1-K cable with halogen free is a safety instrumentation and telecomunication cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in marine applications.
Construction
Conductor
Insulation
XLPE.
The standard identification of insulated conductors is the following:
Pair White + Blue (each core numbered with the pair number).
Other colours available on request.
Assembly of cores
Stranded conductors in pairs.
Individual screen
Overlapping aluminium-polyester tape screen with 100% coverage + tinned copper drain wire applied over the assembled cores.
Assembly of pairs
Cabled in concentric layers.
Colective screen
Overlapping aluminium-polyester tape screen with 100% coverage + tinned copper drain wire applied over the assembled pairs.
Only for XO2TCuZ1-K cables, the tinned copper drain wire will be removed, and the aluminium side of the tape will put in contact with the braid armour.
Braid armour
Tinned copper wire braid armour over the collective screen.
Outer sheath
Polyolefin LSZH.
Grey colour.
Standards / Compliance
ACCORDING TO: IEC 60092-376
Standards and approvals
- CE
- BUREAU VERITAS.
- ABS.
- DNV-GL.
- RoHS.
Disclaimer
The information displayed on this website is provided for reference purposes only and is not legally binding. Specifications, values, and technical data may be subject to change without notice. To obtain verified and up-to-date technical data for a specific cable, please download Top Cable’s official Technical Specification in PDF format. The PDF document constitutes the sole authoritative source of product data.
Characteristics
Electrical performance
150/250V
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuittemperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed installations).
Lowest installation temperature: -15ºC.
Fire performance
Flame non-propagation according to EN 60332-1 and IEC 60332-1.
Fire non-propagation according to IEC 60332-3-22.
LSZH (Low Smoke Zero Halogen) according to EN 60754-1 and IEC 60754-1.
Low smoke emission according to EN 61034 and IEC 61034. Light transmittance > 60%.
Low corrosive gases emission according to UNE-EN 60754-2 and IEC 60754-2.
Mechanical performance
Minimum bending radius: 4 x cable diameter <= 25mm.
Environmental performance
Chemical & Oil resistance: Acceptable.
UV resistant according to EN 50618.
AD6 waves
Installation conditions
Open Air.
In conduit on a bulkhead
On a bulkhead
Other
Meter by meter marking.
