X-VOLT® HEPRZ1 (AS) AL (-OL)
Medium Voltage aluminium cable, HEPR insulation.
Typical applications of
X-VOLT® HEPRZ1 AL (-OL)
Select...
X-VOLT® medium voltage cables are the premier choice for distribution networks, offering reliable 10kV, 11kV, 20kV, 22kV, 30kV, 33kV and 69kV power transmission with aluminum conductors.
X-VOLT® medium voltage cables are the premier choice for industrial facilities. Available CPR-compliant version for enhanced fire safety.
X-VOLT® medium voltage cables are the premier choice for urban lighting grids, tunnels, and smart city infrastructure, meeting stringent international standards for durability and efficiency.
Distribution networks
X-VOLT® medium voltage cables are the premier choice for distribution networks, offering reliable 10kV, 11kV, 20kV, 22kV, 30kV, 33kV and 69kV power transmission with aluminum conductors.
Industrial facilities
X-VOLT® medium voltage cables are the premier choice for industrial facilities. Available CPR-compliant version for enhanced fire safety.
Street lighting
X-VOLT® medium voltage cables are the premier choice for urban lighting grids, tunnels, and smart city infrastructure, meeting stringent international standards for durability and efficiency.
Resources for engineers
X-VOLT® HEPRZ1 AL (-OL) Technical datasheet
Download file
X-VOLT® HEPRZ1 AL (-OL) DoP
Download file
X-VOLT® HEPRZ1 AL (-OL)
Technical specifications
Application
X-VOLT® HEPRZ1 AL is a Medium Voltage aluminium cable for the transmission and distribution of electricity.

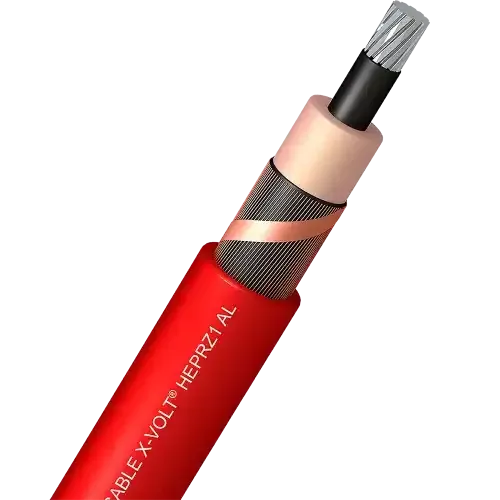

Construction
Conductor
Conductor screen
Screen over the conductor, made of thermosetting semiconductor material.
Insulation
HEPR, in dry atmosphere catenary tube, through a triple layer extrusion process.
Insulation screen
Screen over the insulation, made of thermosetting and strippable semiconductor material.
Metallic screen
Screen of copper wires and copper tape, with a minimum cross-section of 16mm2.
Separation sheath / beding
Polyester tape completely covering the screen to facilitate the stripping of the outer sheath.
Optionally, substituted by hygroscopic tape (cables with longitudinal water tightness, type -OL).
Outer sheath
Polyolefin.
Red colour.
Standards / Compliance
ACCORDING TO: UNE-HD 620-9E (type 9E-1)., NI 56.43.01.
Standards and approvals
- AENOR.
Construction Products Regulation
- Fca
Disclaimer
The information displayed on this website is provided for reference purposes only and is not legally binding. Specifications, values, and technical data may be subject to change without notice. To obtain verified and up-to-date technical data for a specific cable, please download Top Cable’s official Technical Specification in PDF format. The PDF document constitutes the sole authoritative source of product data.
Characteristics
Electrical performance
12/20 (24) kV
18/30 (36) kV
Thermal performance
Maximum service temperature: 105ºC.
Maximum short-circuittemperature: 250ºC (max. 5 s).
Minimum service temperature: -15ºC.
Fire performance
Reaction to fire CPR: Fca according to EN 50575.
Halogen free according to EN 60754-1 / IEC 60754-1.
Low corrosive gases emission according to EN 60754-2 / IEC 60754-2
Mechanical performance
Minimum bending radius: 15x cable diameter.
Minimum bending radius while installation: 20x cable diameter.
Abrasion resistant
Tear resistant.
Environmental performance
UV Resistant: UNE 211605.
Water resistance: AD7 Immersion.
Installation conditions
Open Air.
Buried.
In conduit.
Other
Meter by meter marking.
