X-VOLT® RHZ1 CU (AS) OL/2OL
Medium Voltage copper cable, XLPE insulation.
Medium Voltage copper cable, XLPE insulation and hydrocarbon resistant.
ACCORDING TO: IEC 60502-2., Repsol ED-P-10.01-01.
X-VOLT® RHVhMVh is a Medium Voltage Copper cable for the transmission and distribution of electricity.
Medium Voltage cable
Copper cable
Installation open air, buried and in conduit.
Typical applications of
X-VOLT® RHVhMVh 3x Cu + H1
Select...
X-VOLT® medium voltage cables are the premier choice for distribution networks, offering reliable 10kV, 11kV, 20kV, 22kV, 30kV, 33kV and 69kV power transmission with aluminum conductors.
X-VOLT® medium voltage cables are the premier choice for industrial facilities. Available CPR-compliant version for enhanced fire safety.
X-VOLT® medium voltage cables are the premier choice for urban lighting grids, tunnels, and smart city infrastructure, meeting stringent international standards for durability and efficiency.
Distribution networks
X-VOLT® medium voltage cables are the premier choice for distribution networks, offering reliable 10kV, 11kV, 20kV, 22kV, 30kV, 33kV and 69kV power transmission with aluminum conductors.
Industrial facilities
X-VOLT® medium voltage cables are the premier choice for industrial facilities. Available CPR-compliant version for enhanced fire safety.
Street lighting
X-VOLT® medium voltage cables are the premier choice for urban lighting grids, tunnels, and smart city infrastructure, meeting stringent international standards for durability and efficiency.
Resources for engineers
X-VOLT® RHVhMVh 3x Cu + H1 Technical datasheet
Download file

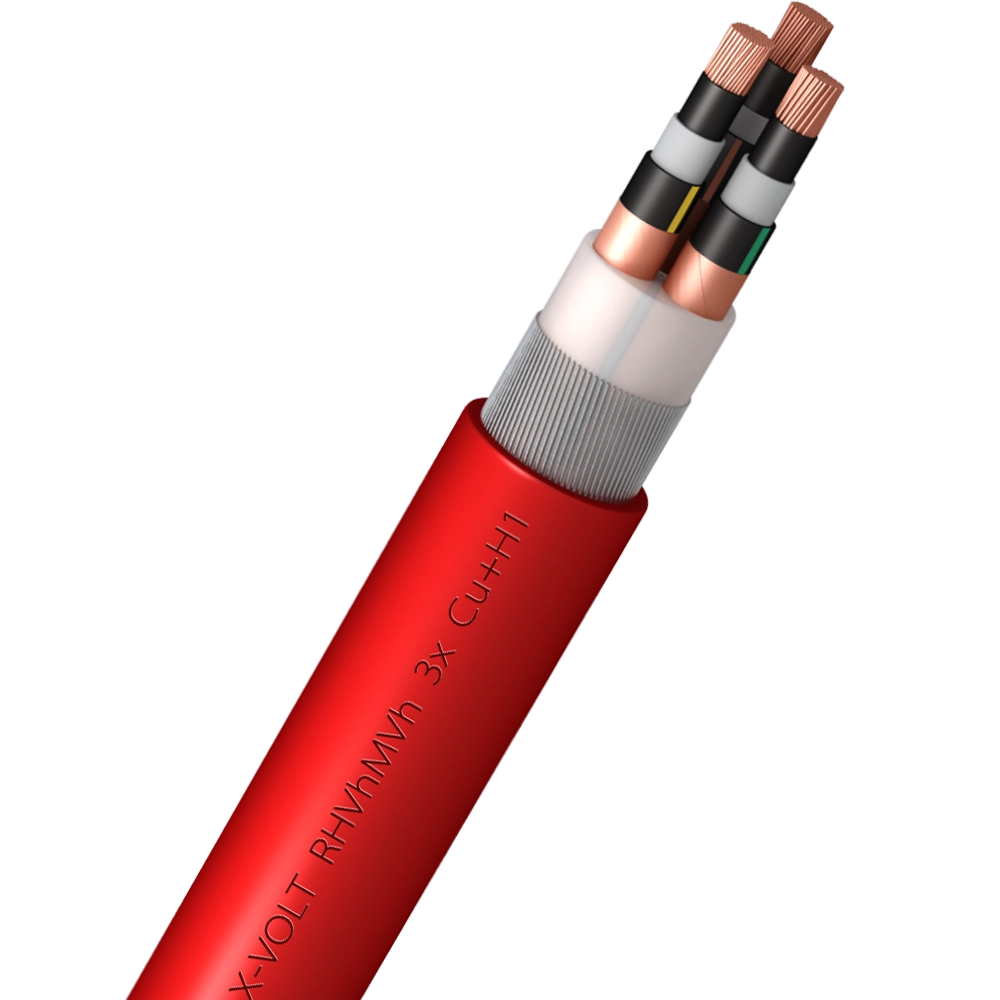

X-VOLT® RHVhMVh 3x Cu + H1
Technical specifications
Application
X-VOLT® RHVhMVh is a Medium Voltage Copper cable for the transmission and distribution of electricity. This cable is recommended for installations where there may be a risk of oils and/or hydrocarbon type chemical agents coming into contact with the cable.
Construction
Conductor
Conductor screen
Screen over the conductor, made of thermosetting semiconductor
material.
Insulation
XLPE.
Cross linked in catenary line with nitrogen atmosphere by a triple layer extrusion process.
Insulation screen
Screen over the insulation, made of thermosetting and strippable semiconductor material.
Cores identification
The cores are identified with a tape placed along the cable between the external semiconductor and the metallic screen. Colours are brown, green and yellow.
Metallic screen
Metallic screen made of copper tape. It consists in two copper tapes
of 0,1 mm of thickness placed helicoidally and overlapped (H1 screen)
over the outer semi-conducting screen.
Assembly of cores
The three cores are assembled helicoidally with the metallic screens
in touch.
Separation sheath / beding
PVC. The special compound gives a high level of resistance to hydrocarbons and mineral oils.
Armour
Galvanized steel wire wrapped helicoidally around the cable and
fixed with a counter-wound metal tape.
Outer sheath
PVC. The special compound gives a high level of resistance to hydrocarbons and mineral oils.
Red colour.
Other colours under request.
Standards / Compliance
ACCORDING TO: IEC 60502-2., Repsol ED-P-10.01-01.
Disclaimer
The information displayed on this website is provided for reference purposes only and is not legally binding. Specifications, values, and technical data may be subject to change without notice. To obtain verified and up-to-date technical data for a specific cable, please download Top Cable’s official Technical Specification in PDF format. The PDF document constitutes the sole authoritative source of product data.
Characteristics
Electrical performance
3,6/6 (7,2) kV
6/10 (12) kV
8,7/15 (17,5) kV
12/20 (24) kV
18/30 (36) kV
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuittemperature: 250ºC (max. 5 s).
Minimum service temperature: -15ºC.
Fire performance
Flame non-propagation according to EN 60332-1 and IEC 60332-1.
Fire non-propagation according to EN 60332-3 / IEC 60332-3.
Reduced halogen emission. Chlorine <15%.
Mechanical performance
Minimum bending radius: 15x cable diameter.
Minimum bending radius during installation: 20x cablediameter.
Abrasion resistant
Tear resistant.
Environmental performance
Oil resistant: according to UIC 895 OR.
Chemical resistance: Excellent.
Hydrocarbon resistant: according to UIC 895 OR.
Installation conditions
Open Air.
Buried.
In conduit.
Other
Meter by meter marking.
