X-VOLT® TSLF AL
Technical specifications
Application
X-VOLT® TSLF AL is a cable for fixed installations. Suitable for transport and distribution of electric power in medium voltage networks. Halogen free.

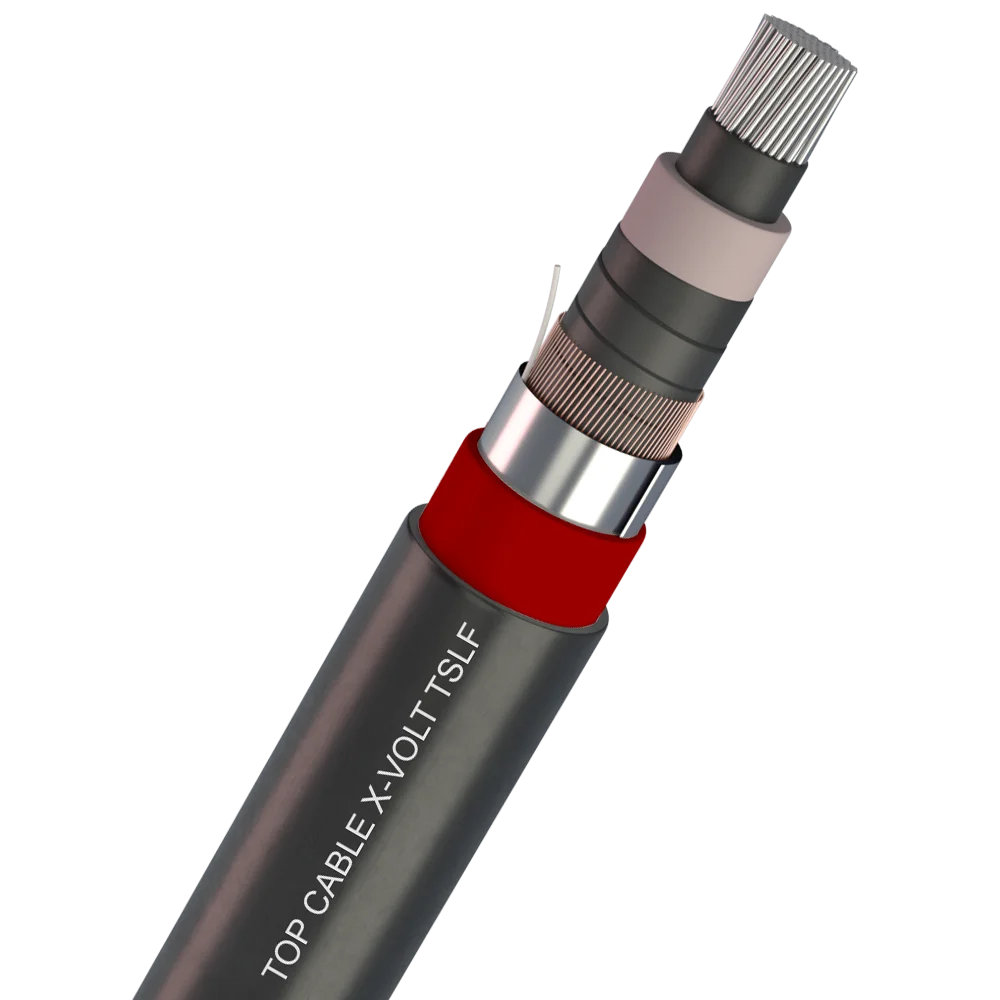

Construction
Conductor
Aluminium, class 2. Hygroscopic tapes applied to achieve longitudinal watertightness on the conductor.
Conductor screen
Cross-linked semiconductor screen applied over conductor in a
triple-extrusion process.
Insulation
XLPE.
Cross linked in catenary line with nitrogen atmosphere by a triple layer extrusion process.
Insulation screen
Cross-linked semiconductor screen applied over insulation in a
triple-extrusion process. Bonded to the insulation layer.
Longitudinal sealing
Hygroscopic tape completely covering the screen.
Metallic screen
Metallic screen with copper wires, applied over the semi-conducting
swellable tape.
Radial water-blocking barrier
Made up of an aluminium foil/polymer laminate bonded to the outer
sheath.
Outer sheath
Polyethylene.
Black colour.
Standards / Compliance
ACCORDING TO: HD 620-10K.
Construction Products Regulation
- Eca.
Disclaimer
The information displayed on this website is provided for reference purposes only and is not legally binding. Specifications, values, and technical data may be subject to change without notice. To obtain verified and up-to-date technical data for a specific cable, please download Top Cable’s official Technical Specification in PDF format. The PDF document constitutes the sole authoritative source of product data.
Characteristics
Electrical performance
12kV, 24kV and 36kV.
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuittemperature: 250ºC (max. 5 s).
Minimum service temperature: -15ºC.
Fire performance
Reaction to fire CPR: Eca according to EN 50575.
Halogen free according to EN 60754-1 / IEC 60754-1.
Low corrosive gases emission according to EN 60754-2 / IEC 60754-2.
Mechanical performance
Minimum bending radius: 15x cable diameter.
Minimum bending radius during installation: 30x cable diameter.
Abrasion resistant.
Tear resistant.
Environmental performance
Water resistance: AD8 Submersion.
Installation conditions
Open Air.
Buried.
In conduit.
Other
Meter by meter marking.
